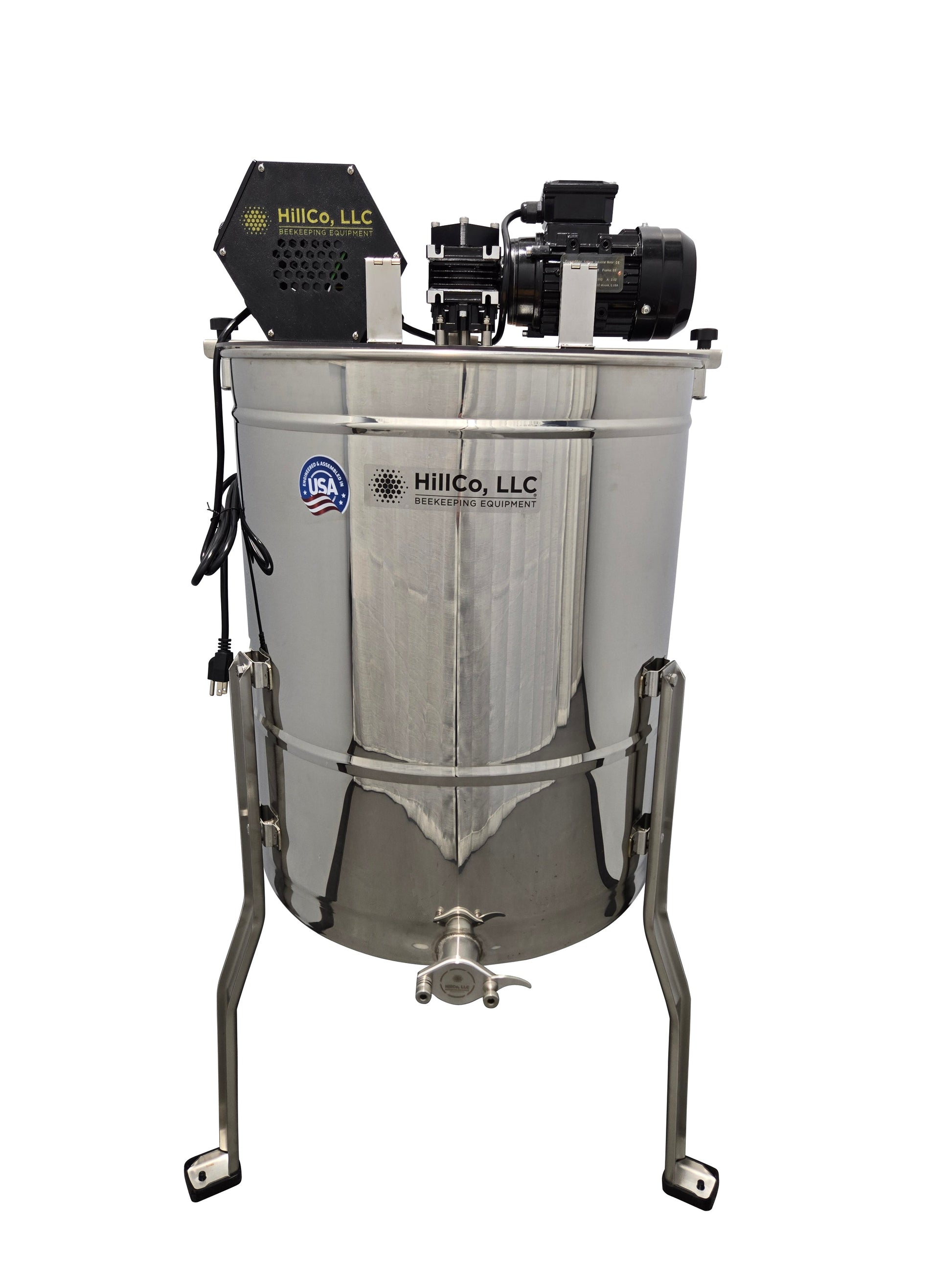

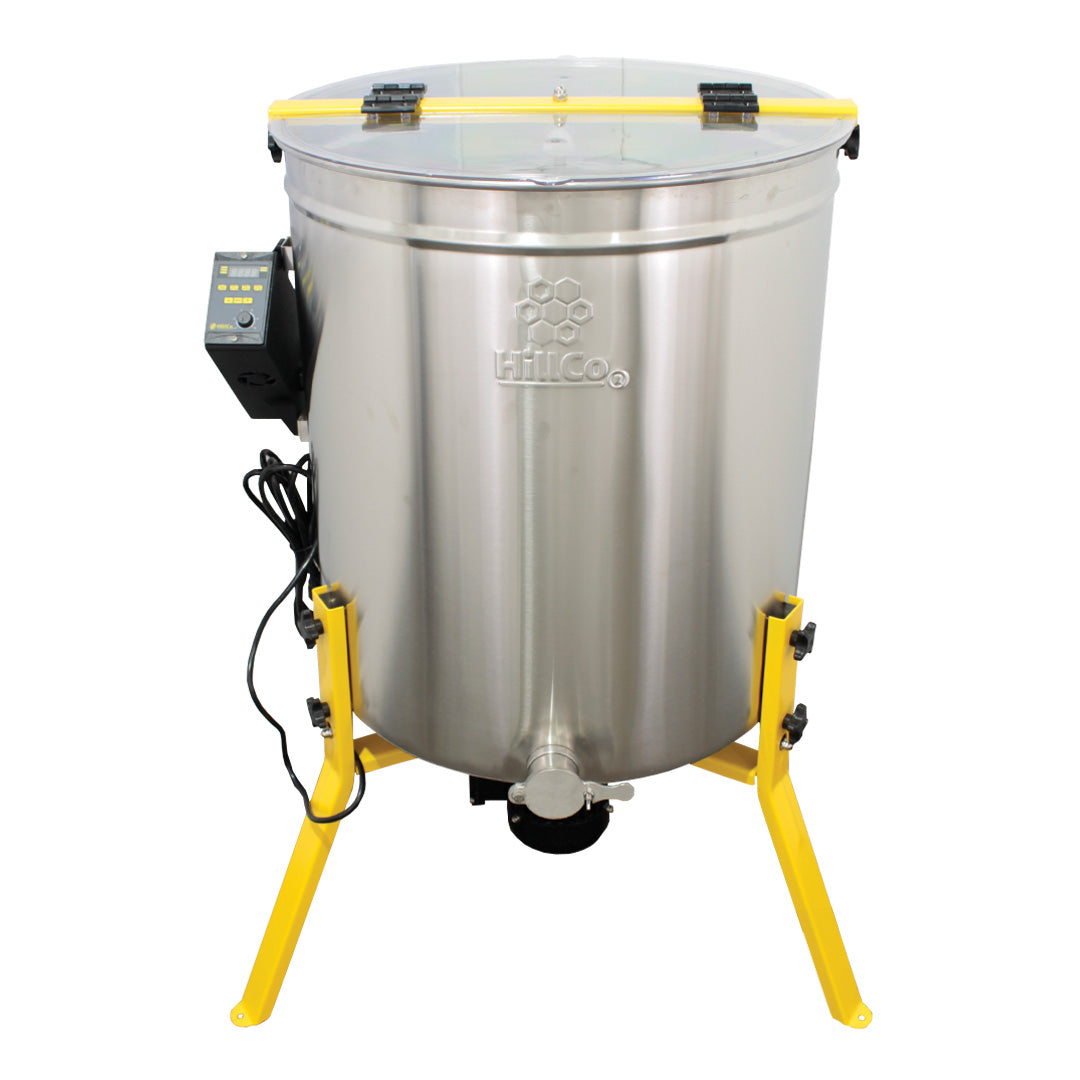

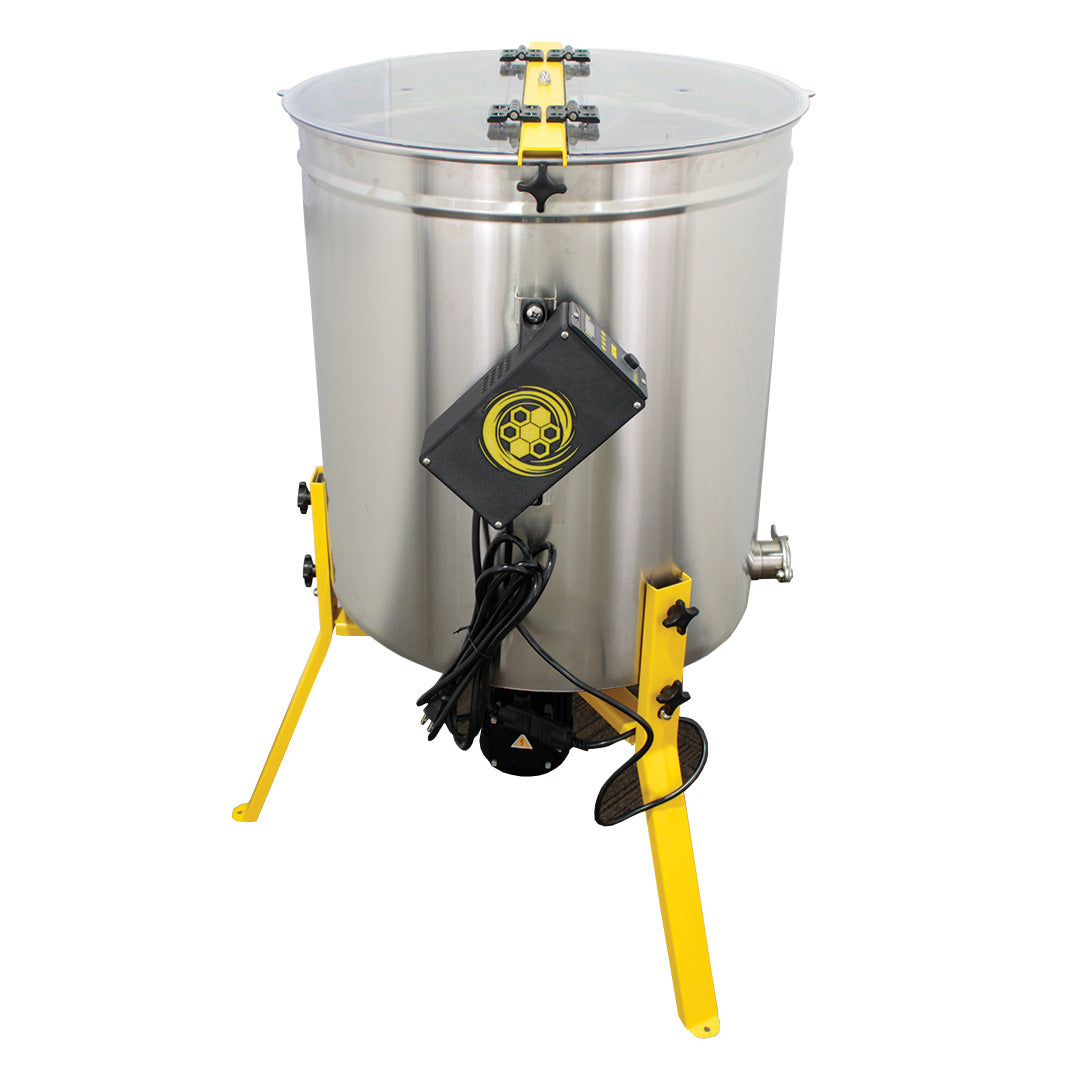

Maxx12 Honey Extractor - 12 Frame Radial

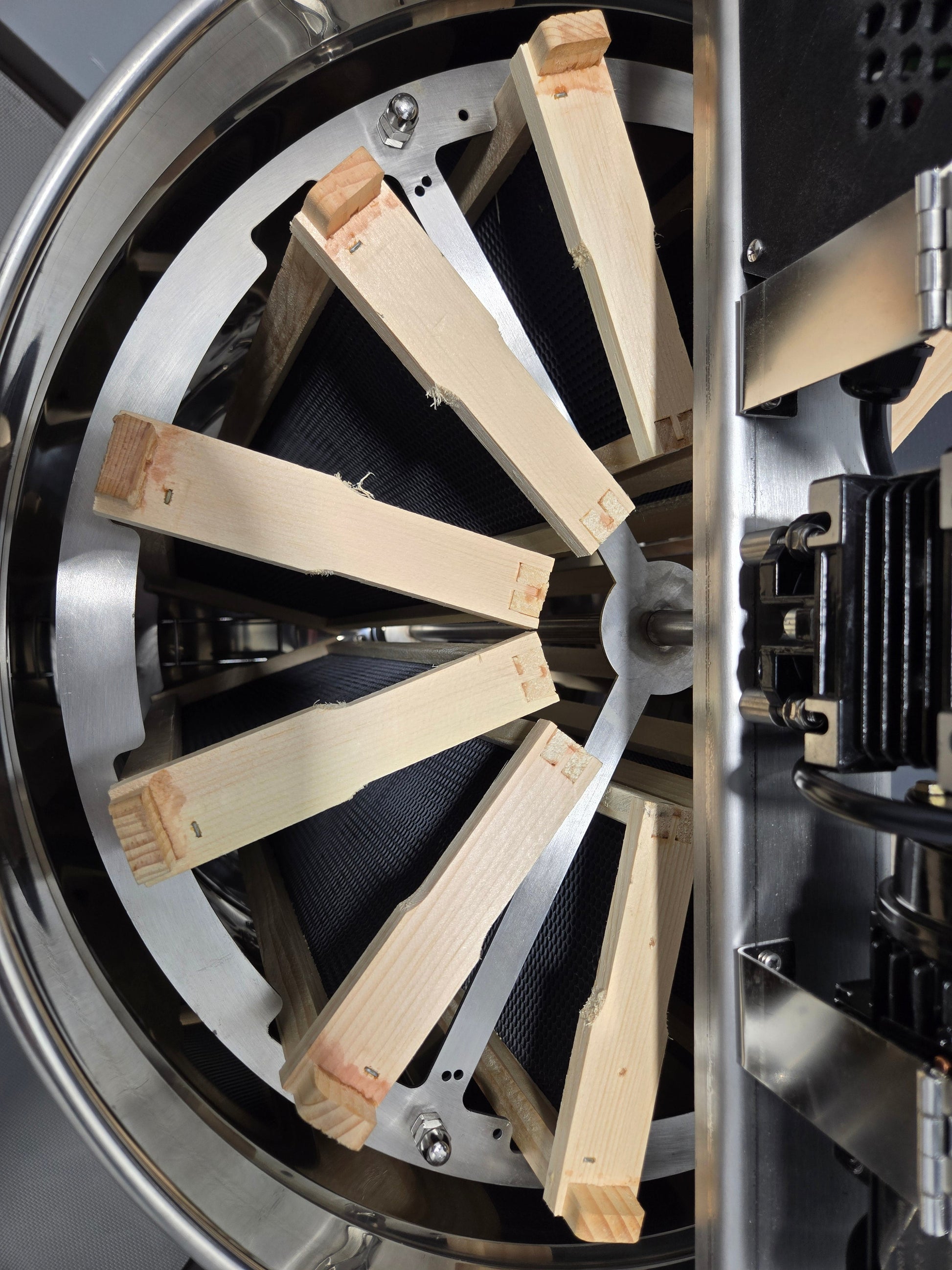

The compact, capable machine you've been looking for! A small footprint, 12 frame extractor with the same features and design as our largest machines..... Now with an improved stainless steel inner basket, and our bottom-drive design!

Part of our "Maxx" family of flagship extractors, the Maxx12 stands head-and-shoulders above the competition in many ways. Here are a few things that set it apart:

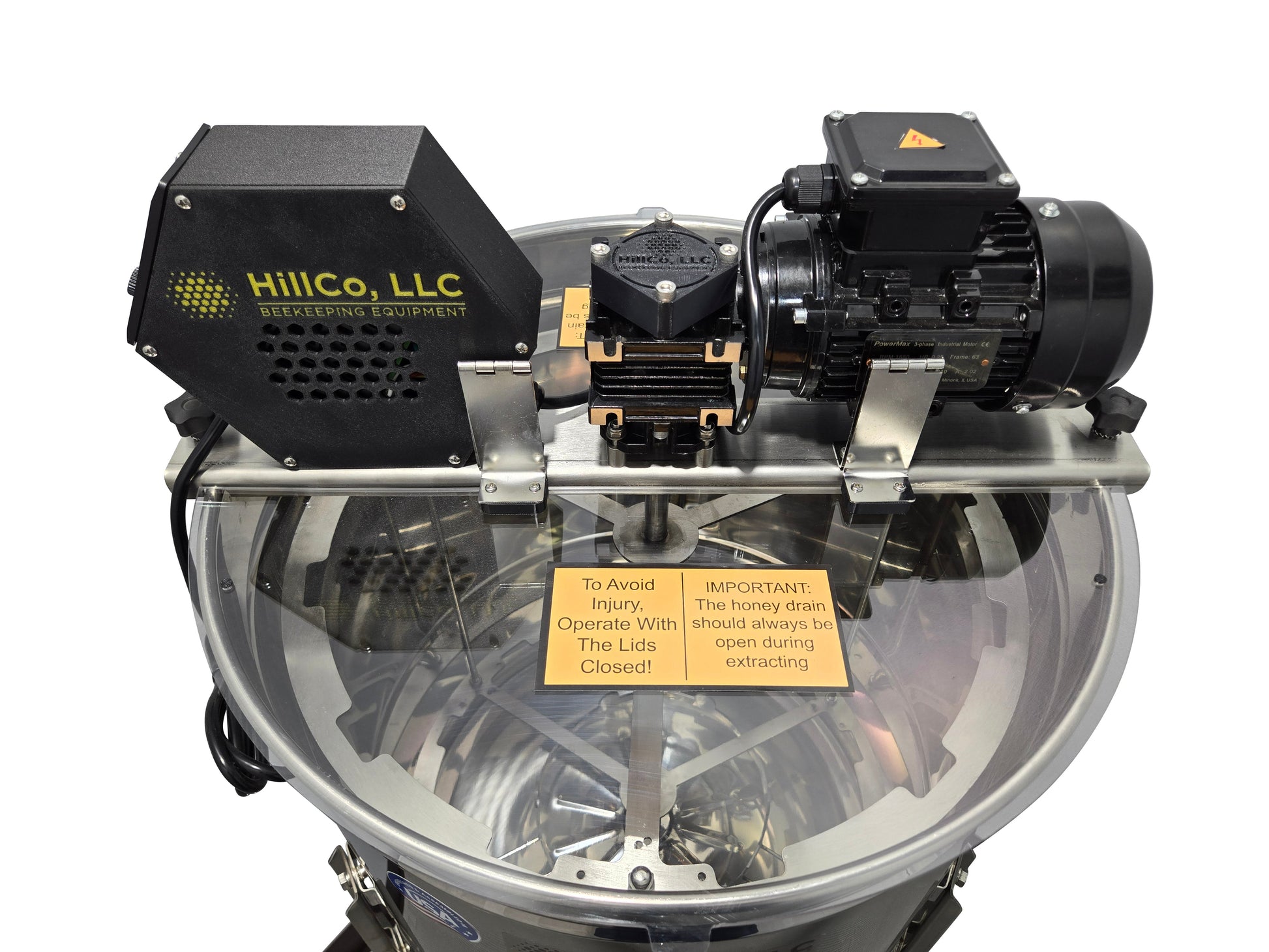

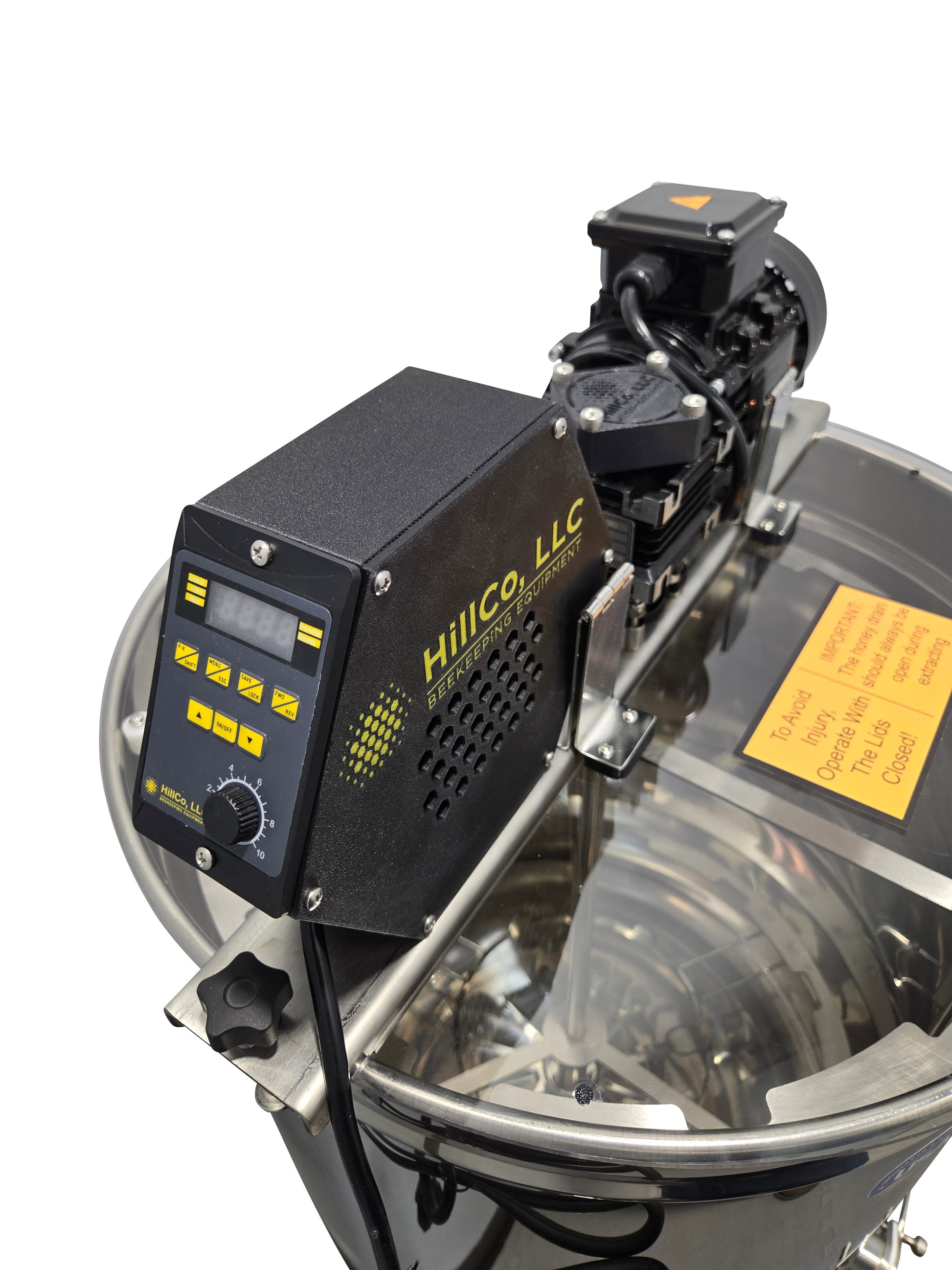

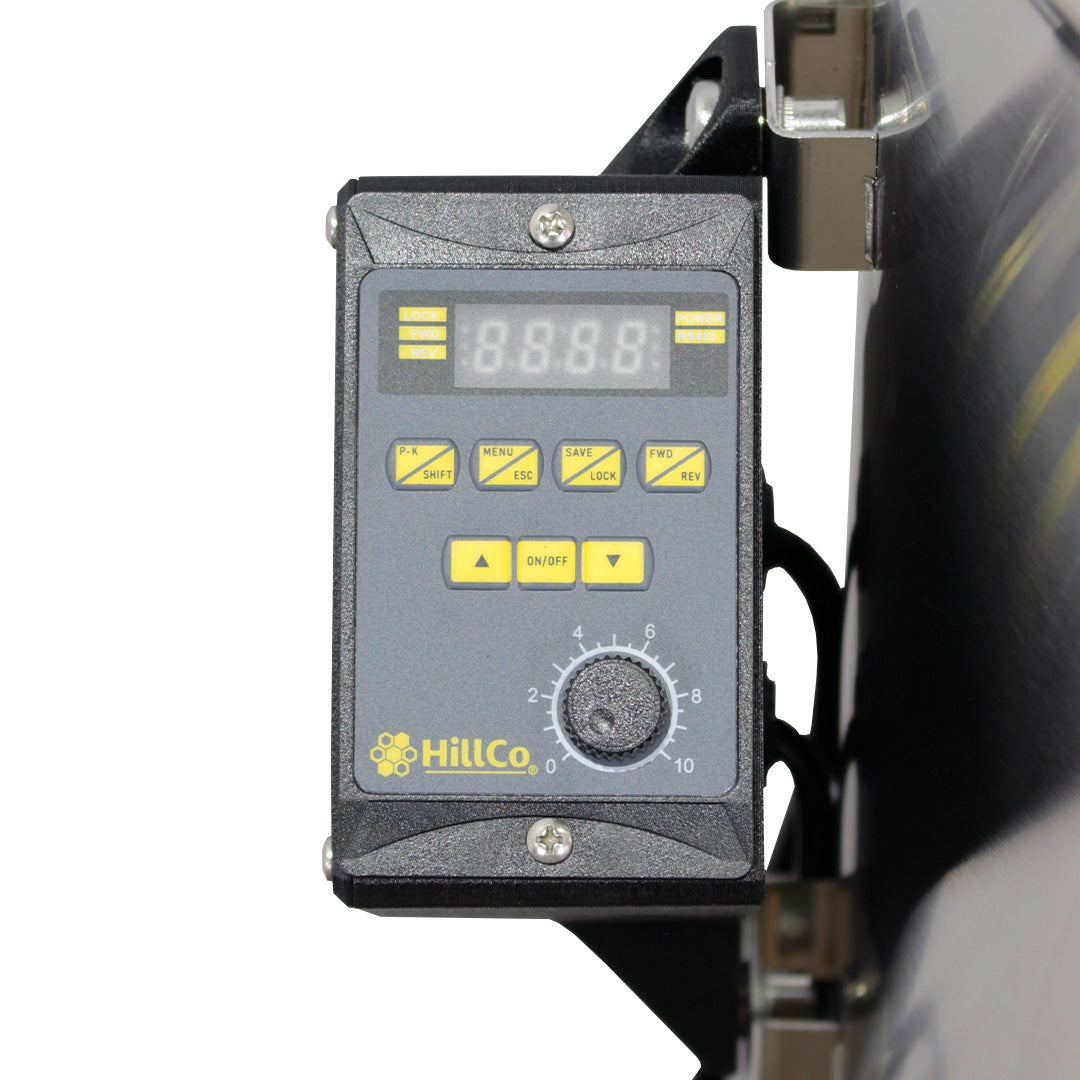

• Proven HillCo PowerMax drive system: an industrial grade motor, gearbox, and controller. Smooth, quiet and durable, it's a great combination of simplicity and refinement. This is the same design that we use all the way up to our big 48 frame extractors!
• 22 gauge, type 304 stainless steel tank

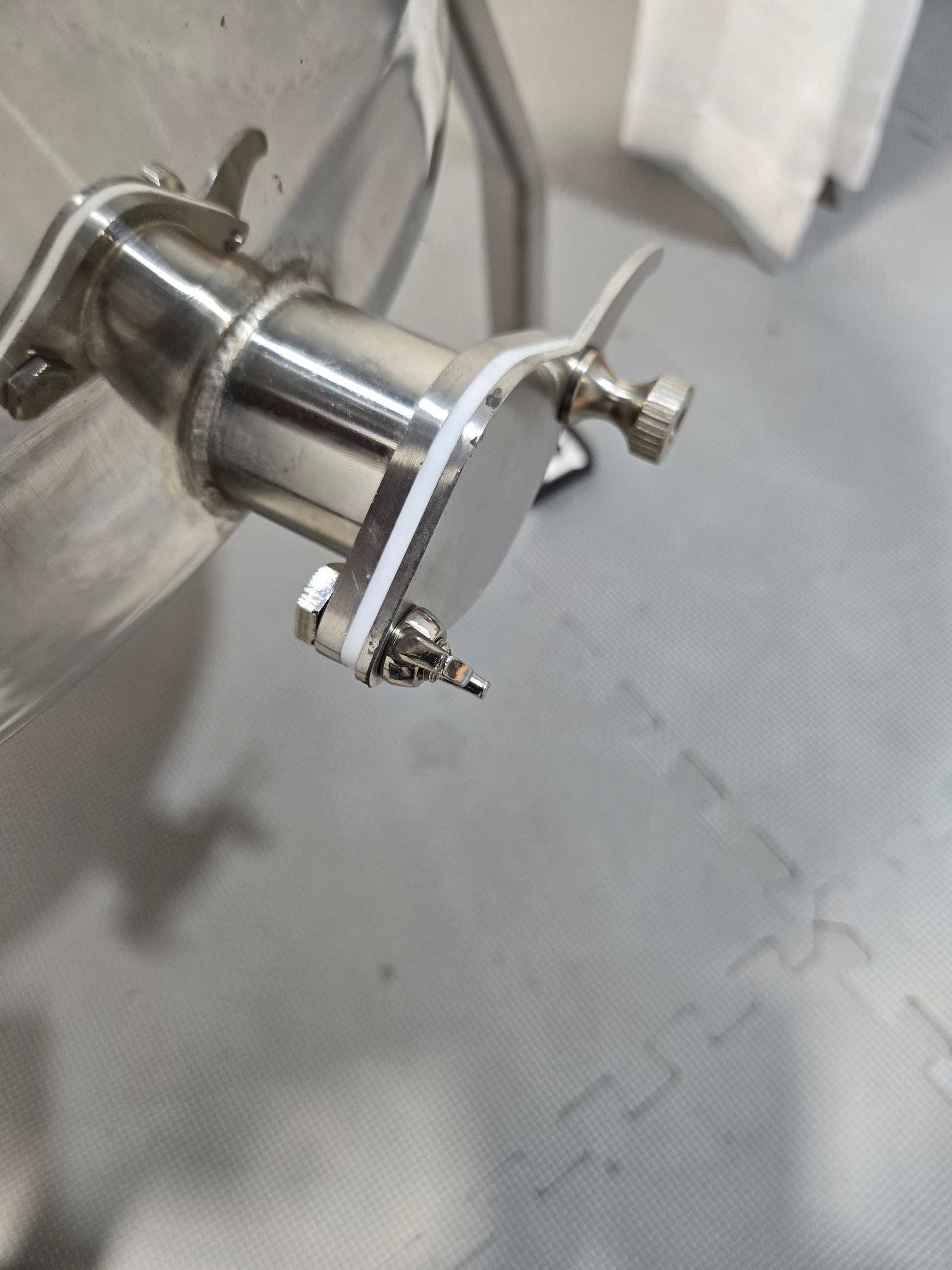

• Ez-Drain honey gate design: the honey drain valve is located slightly below the tank floor, giving you a complete, seamless honey drain.

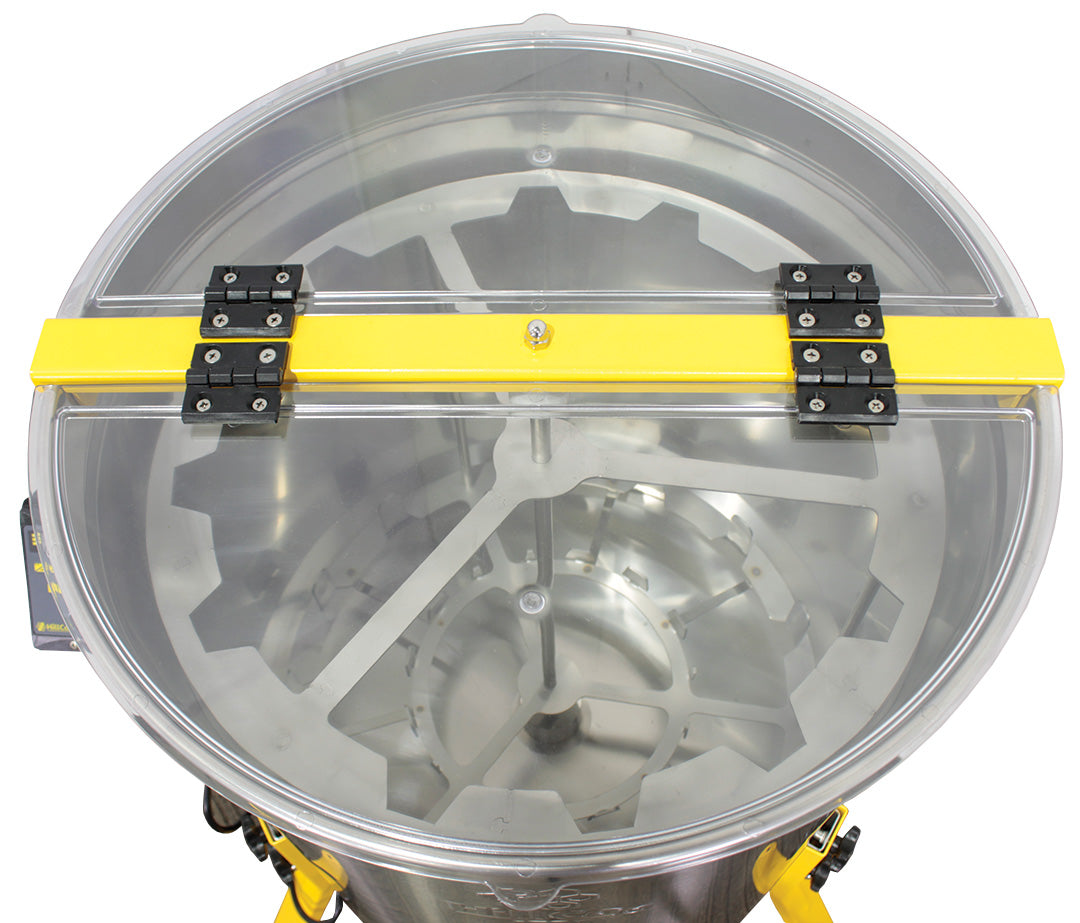

• Maxx extractor tank features a HillCo-exclusive tank bottom that slopes towards the front, ensuring that all your honey flows smoothly towards the gate. No tipping the tank, no hassle, it just works!
• Industry exclusive 4/10 warranty: motor, gearbox, controller, and wiring are guaranteed for 4 years. The rest of the machine (tank, legs, lower bearing, reel, etc), are guaranteed for 10 years! We have engineered a quality product and we will stand behind it!
• The main structural components are made to our specs in Turkey, with final assembly done in our USA shop!

Other features/specs:

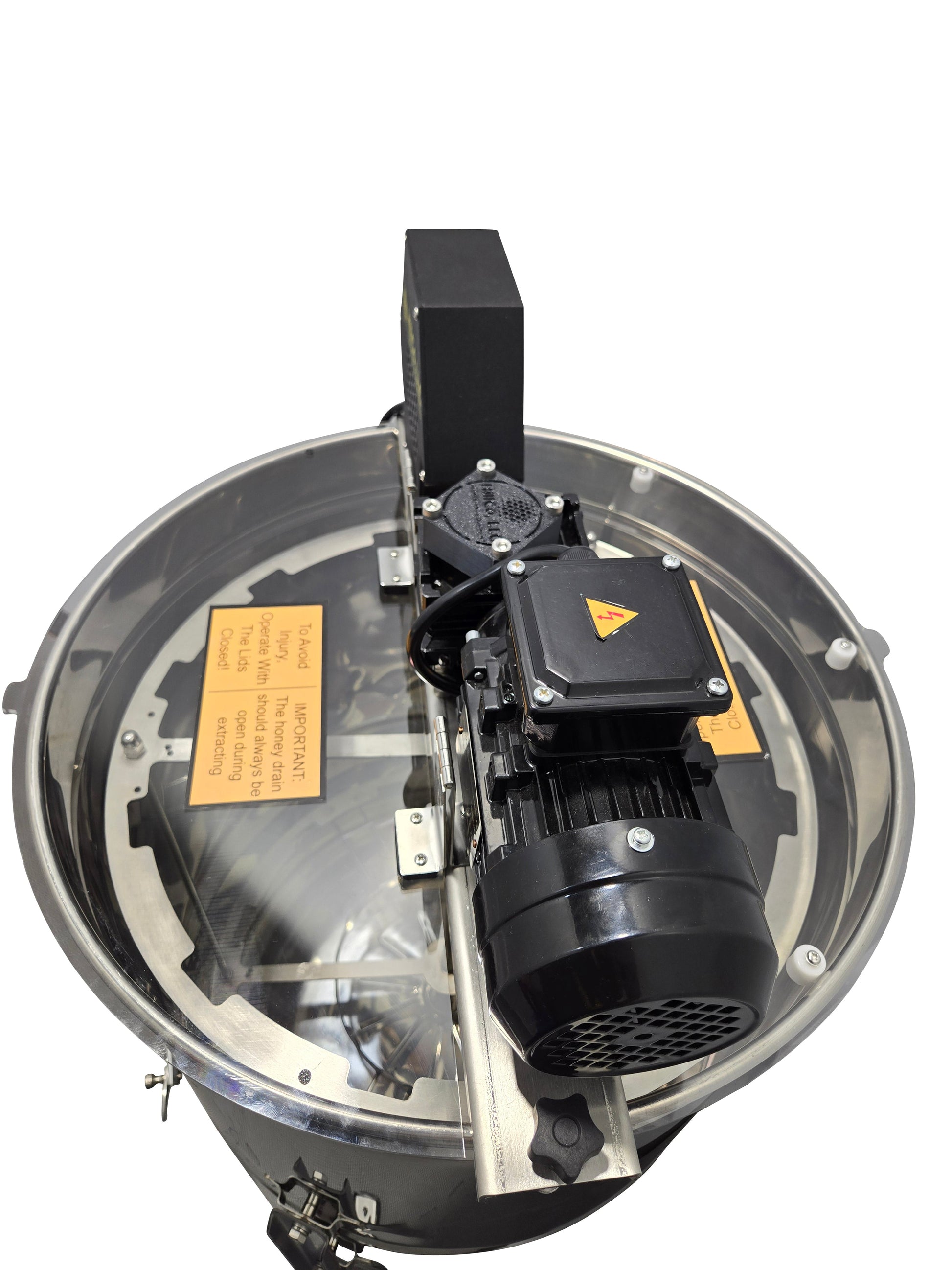

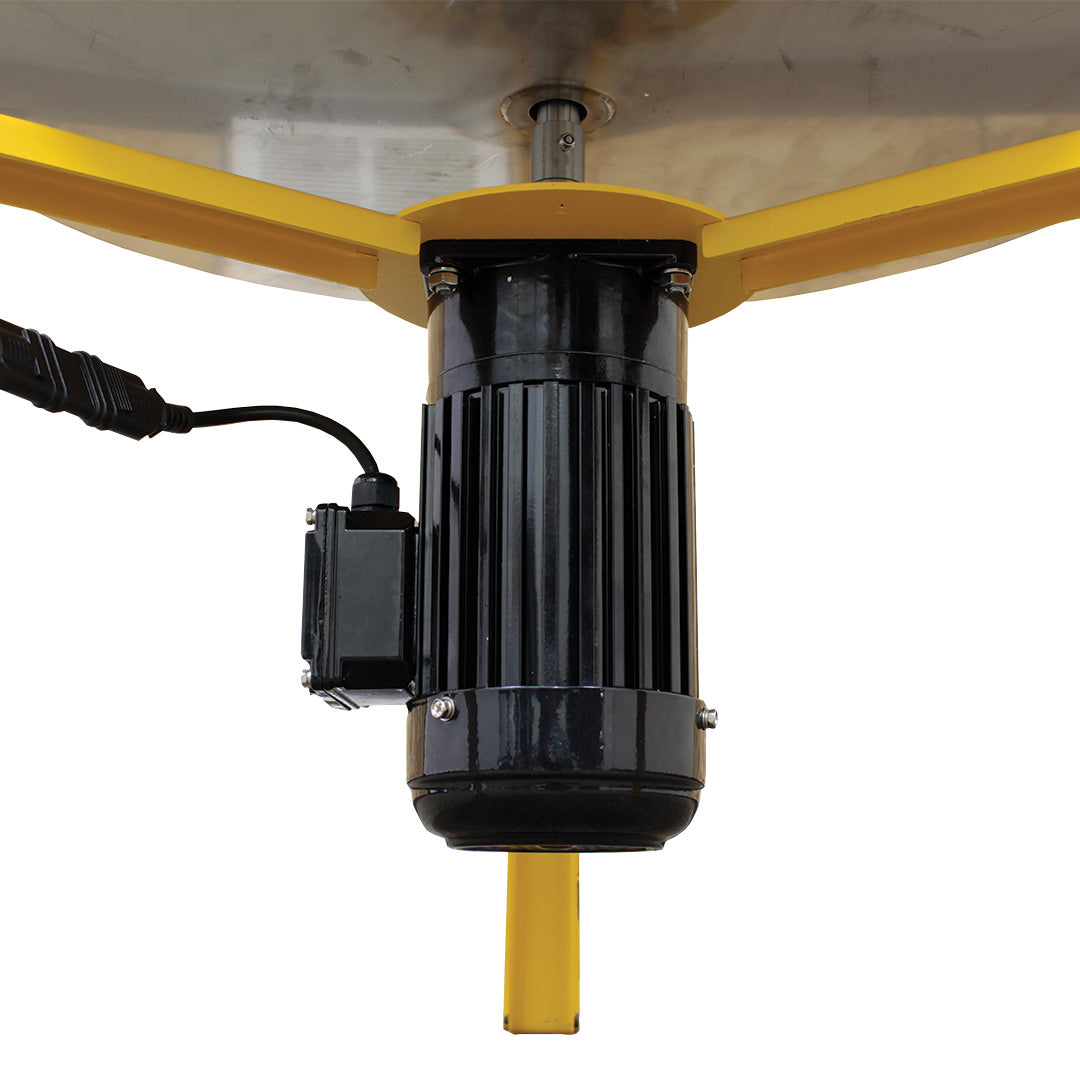

• 1/4 horsepower PowerMax motor, 5:1 ratio gearbox mounted below the machine for lowered center of gravity, and improved lid accessibility.

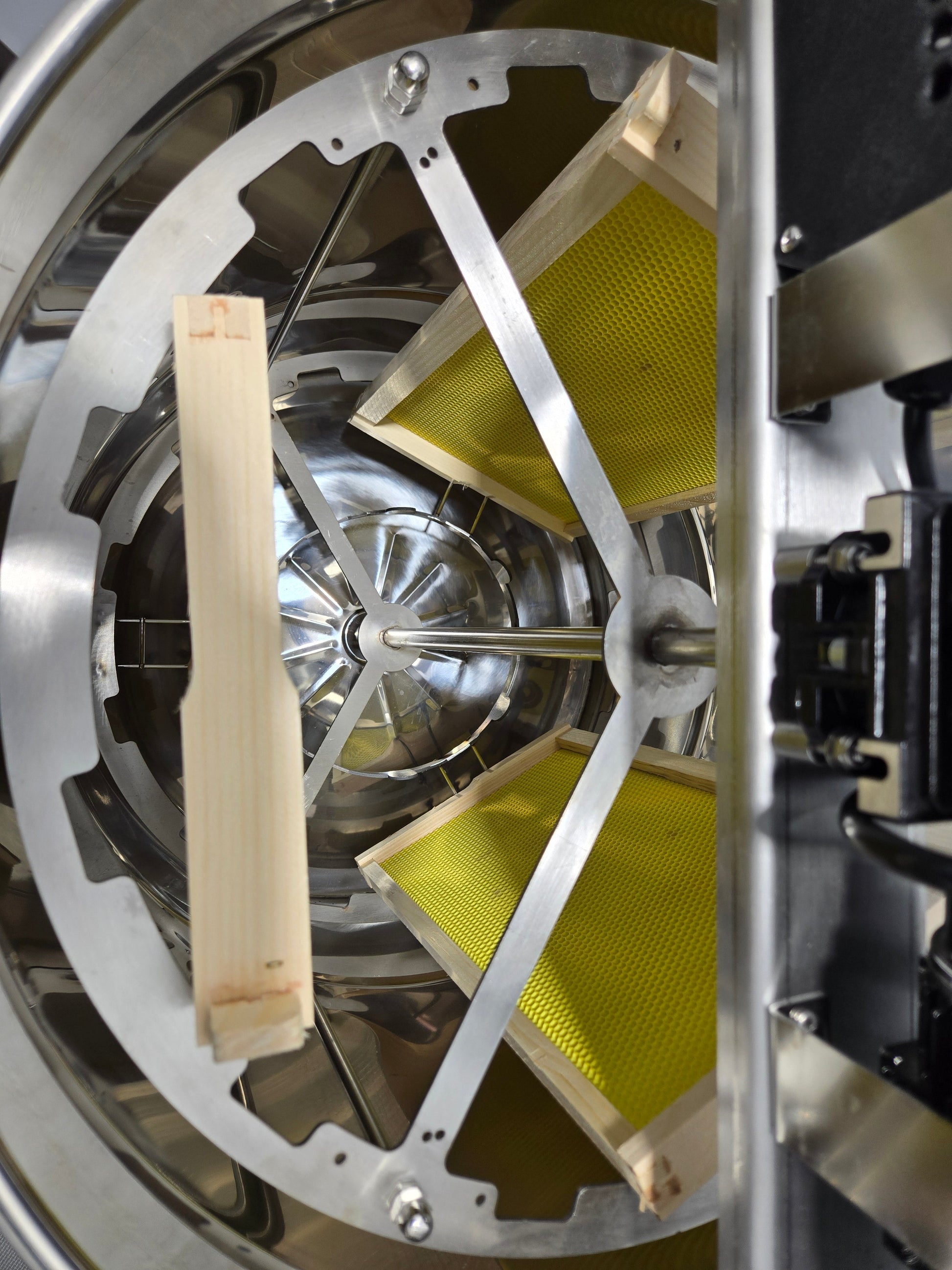

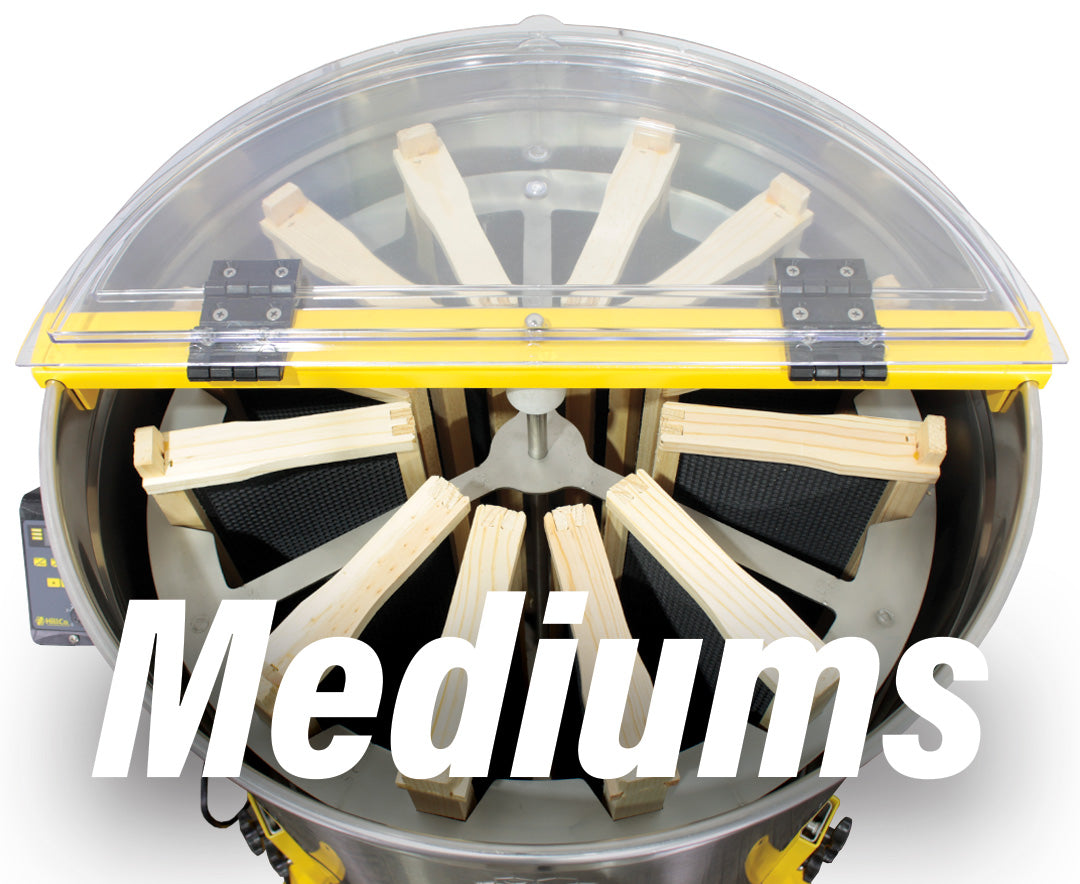

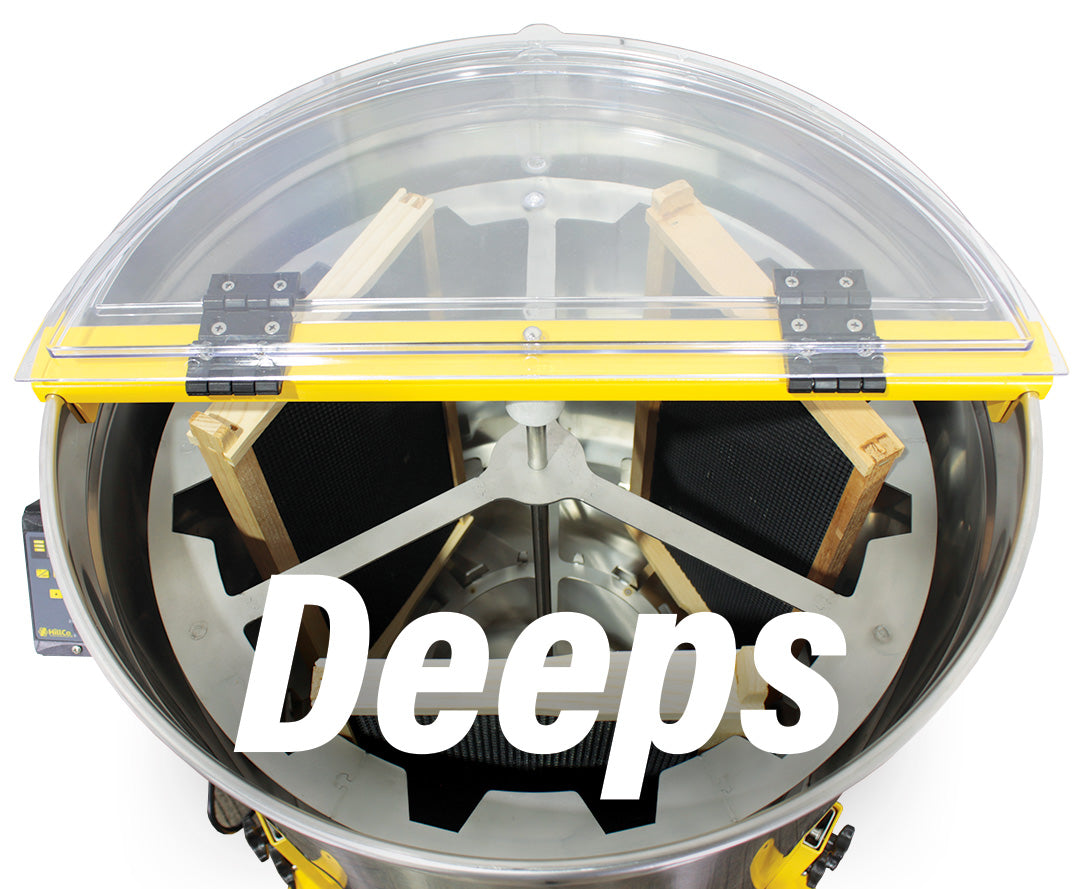

• Extracts 12 medium or shallow frames radially. Also extracts 3 deep frames tangentially.
• 5 gallon bucket fits below the honey gate
• Tank diameter - 21"

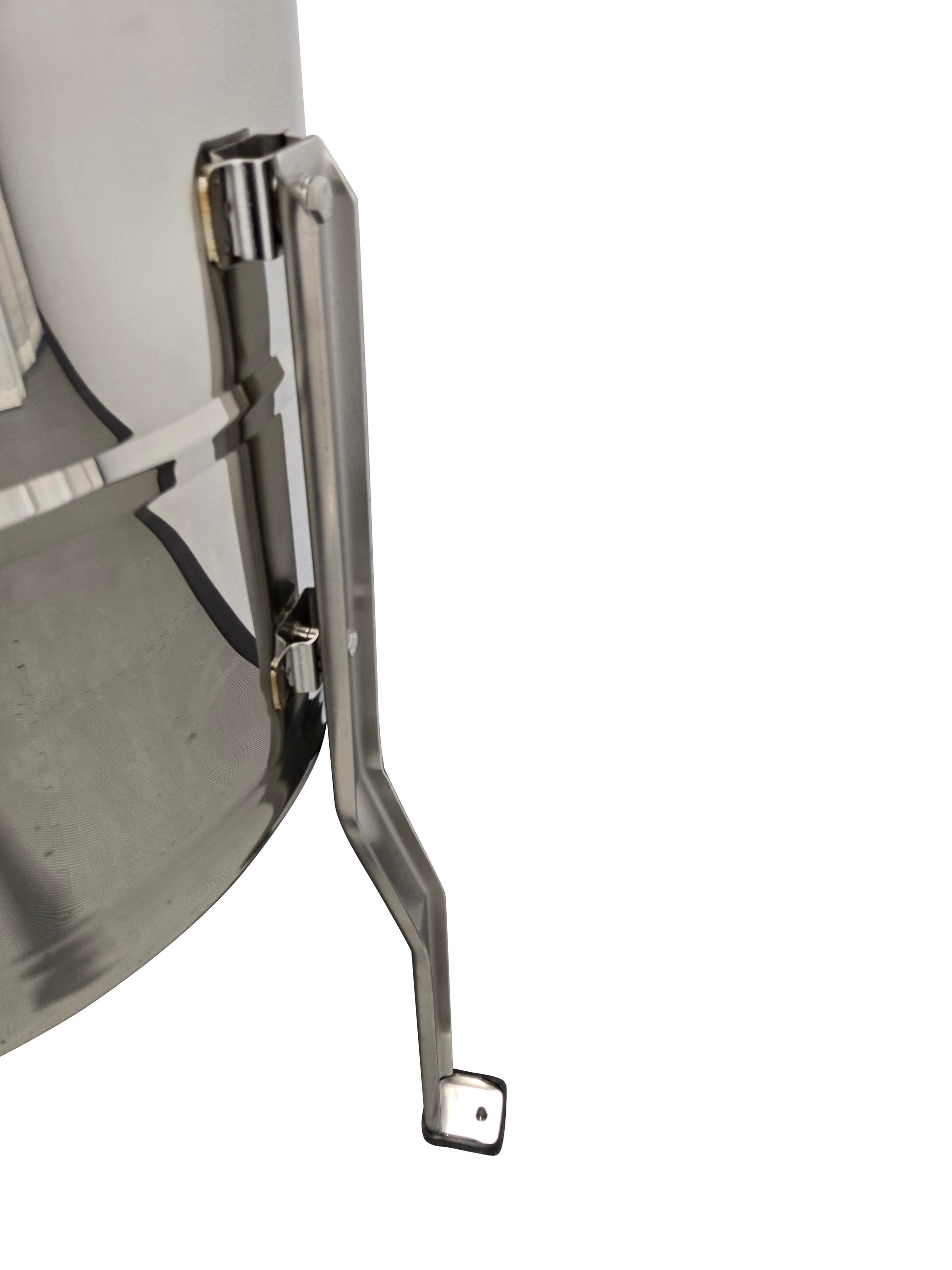

• Width (at widest point of legs) - 29"
• Overall height - 42"


***The Small size Spring Feet Kit will work with this extractor (sold separately)***

This is a fantastic machine, and we know you'll love it!
