Maxx21 Honey Extractor - 21 Frame Radial

The perfect blend of power, precision, and performance — introducing the Maxx21 Honey Extractor!

Replacing our ever-popular Maxx18, the Maxx21 takes everything beekeepers loved about its predecessor and adds even more capacity, refinement, and stability.

Now featuring our new bottom-drive PowerMaxx system, the Maxx21 offers smoother operation, improved balance, and easier access — all while holding up to 12 deep frames or 21 medium/shallow Langstroth frames in a true radial configuration.

Part of our Maxx family of flagship extractors, the Maxx21 is built for serious hobbyists and sideliners who want commercial-grade performance without the bulk.

Here’s what sets it apart:

🔹 Proven PowerMaxx Drive System – Our tried-and-true 3-phase PowerMaxx motor, gearbox, and controller deliver smooth, quiet performance with industrial-grade reliability. The same system used across our larger extractors, pumps, and creamer machines.

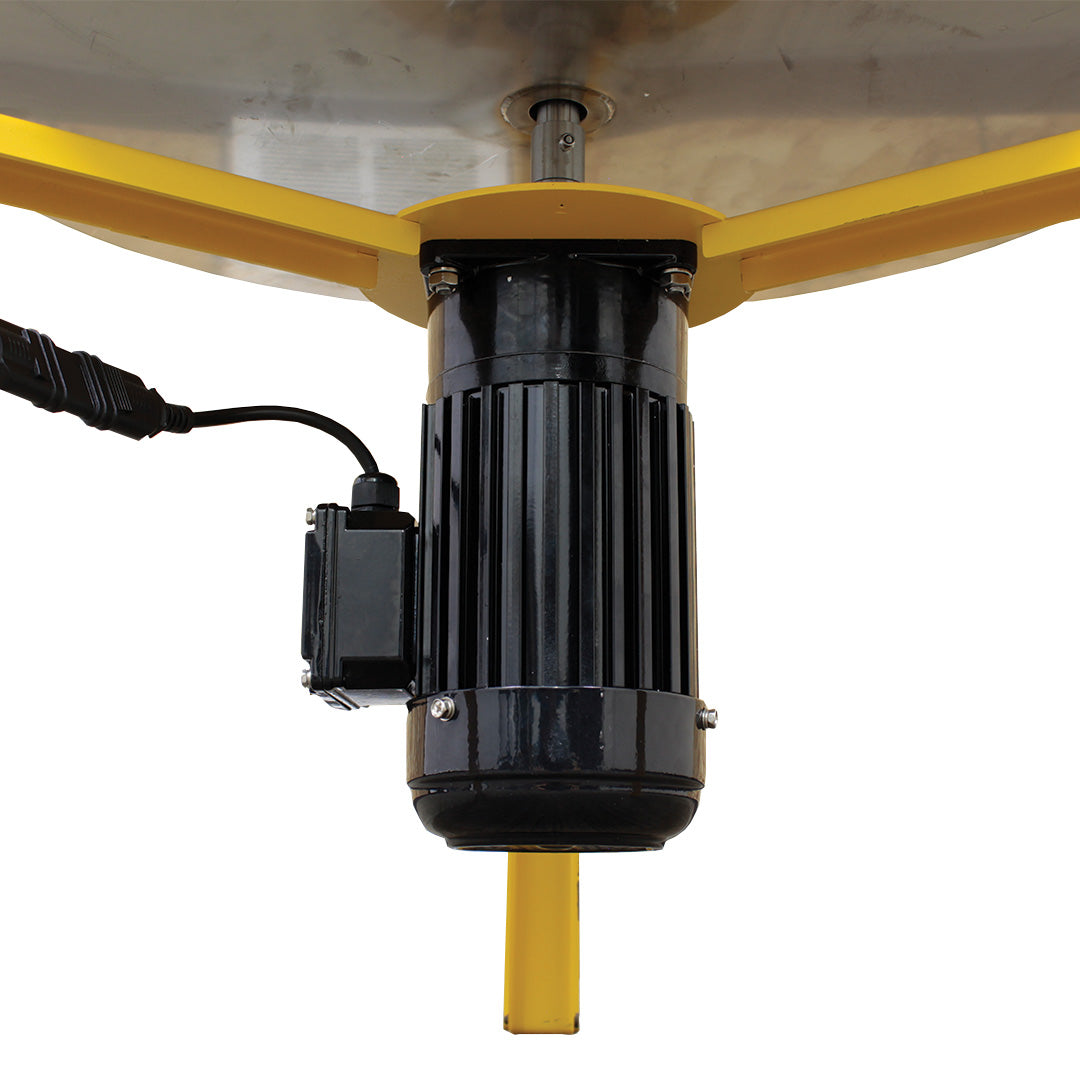

🔹 Bottom-Drive Design – The motor and gearbox are now mounted below the tank, lowering the center of gravity for a more stable spin and cleaner overall look. This setup also allows both polycarbonate lids to hinge open, giving you easy access for loading and unloading frames.

🔹 Premium 304 Stainless Steel Construction – 22-gauge, food-grade stainless steel tank and reel — some of the thickest in the industry — built in our new Turkish manufacturing facility known for top-tier quality and consistency.

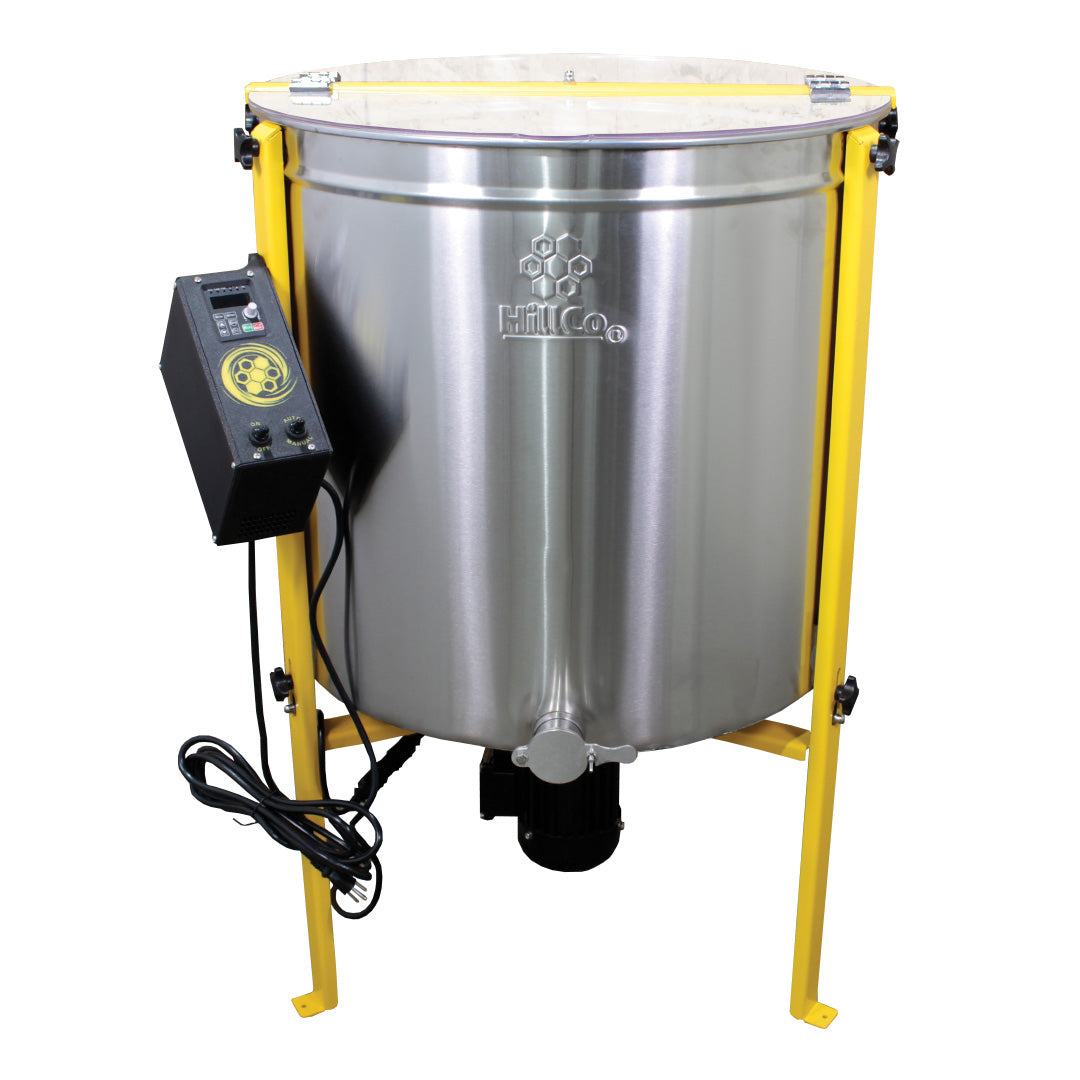

🔹 EZ-Drain Tank Floor – A HillCo-exclusive sloped tank bottom ensures your honey naturally flows toward the gate — no tipping, no wasted honey. The honey gate sits nearly flush with the tank floor, allowing a clean, complete drain straight into your 5-gallon bucket.

🔹 Legendary 4/10 Warranty –
• 4 years on motor, gearbox, and controller
• 10 years on everything else — tank, reel, legs, lids, bearings, hardware, honey gate, and more.
No fine print, no hassle — we stand behind our machines, period.

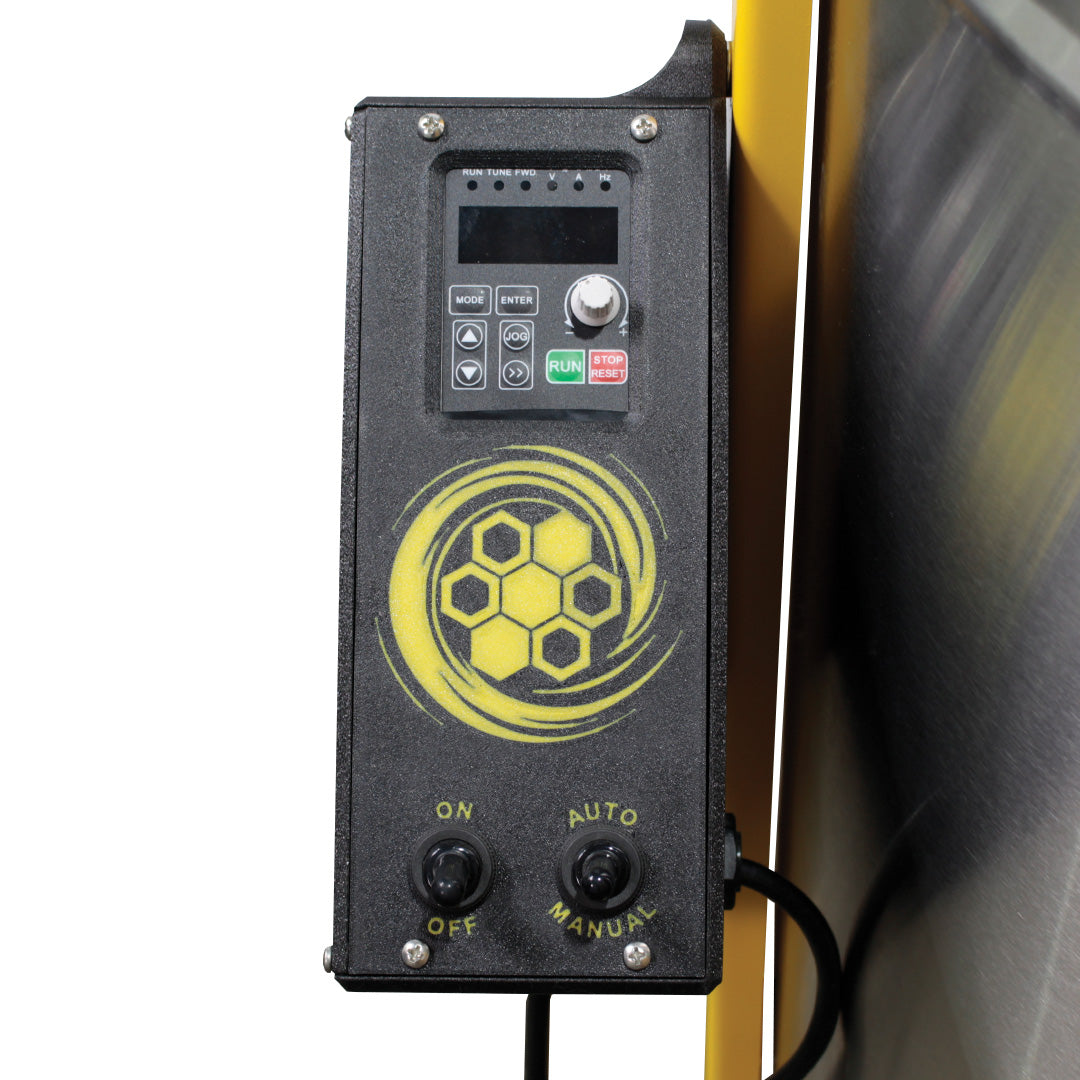

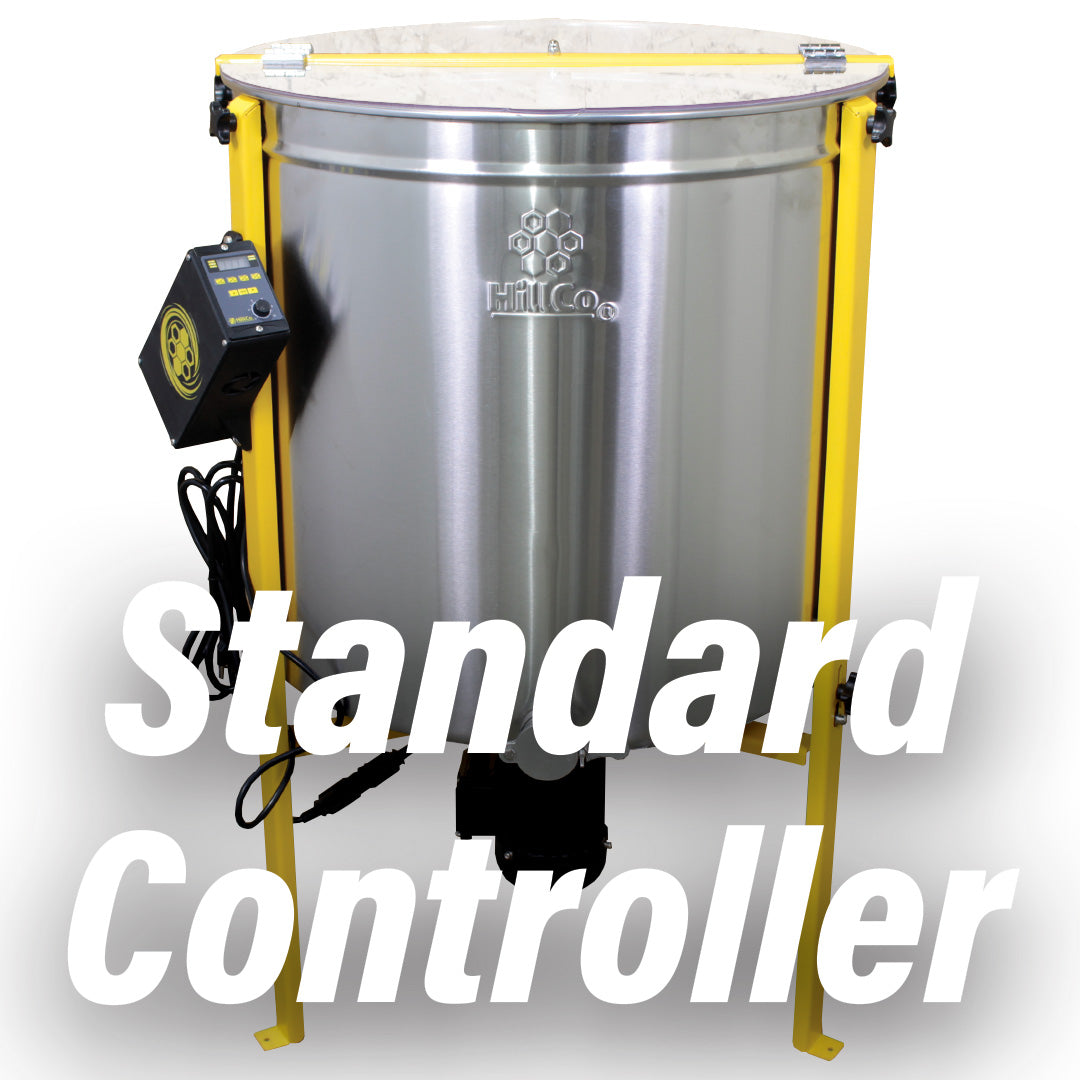

🔹 Optional Deluxe Controller – Choose between our standard, time-tested manual speed control or upgrade to the deluxe programmable controller with auto mode for hands-free operation.

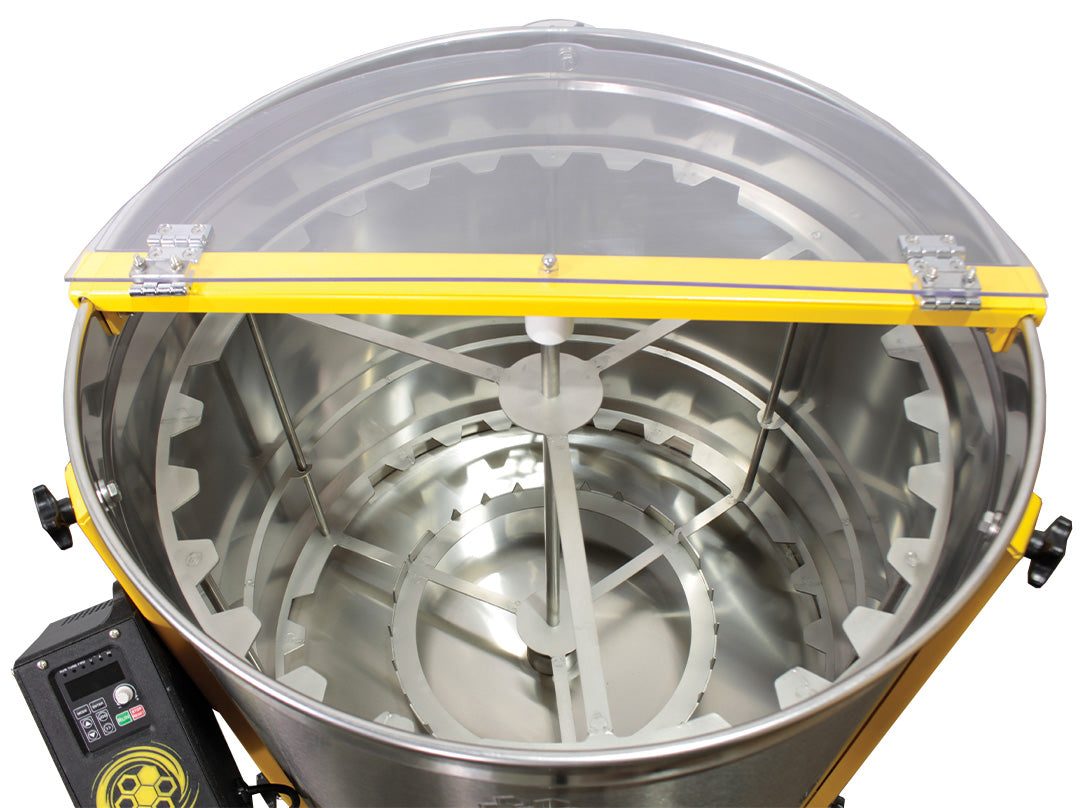

🔹 Easy to Clean & Maintain – Just remove two knobs and lift off the top bar and lids to access the reel. Simple, quick disassembly for cleaning and maintenance — no tools required.

Specs:

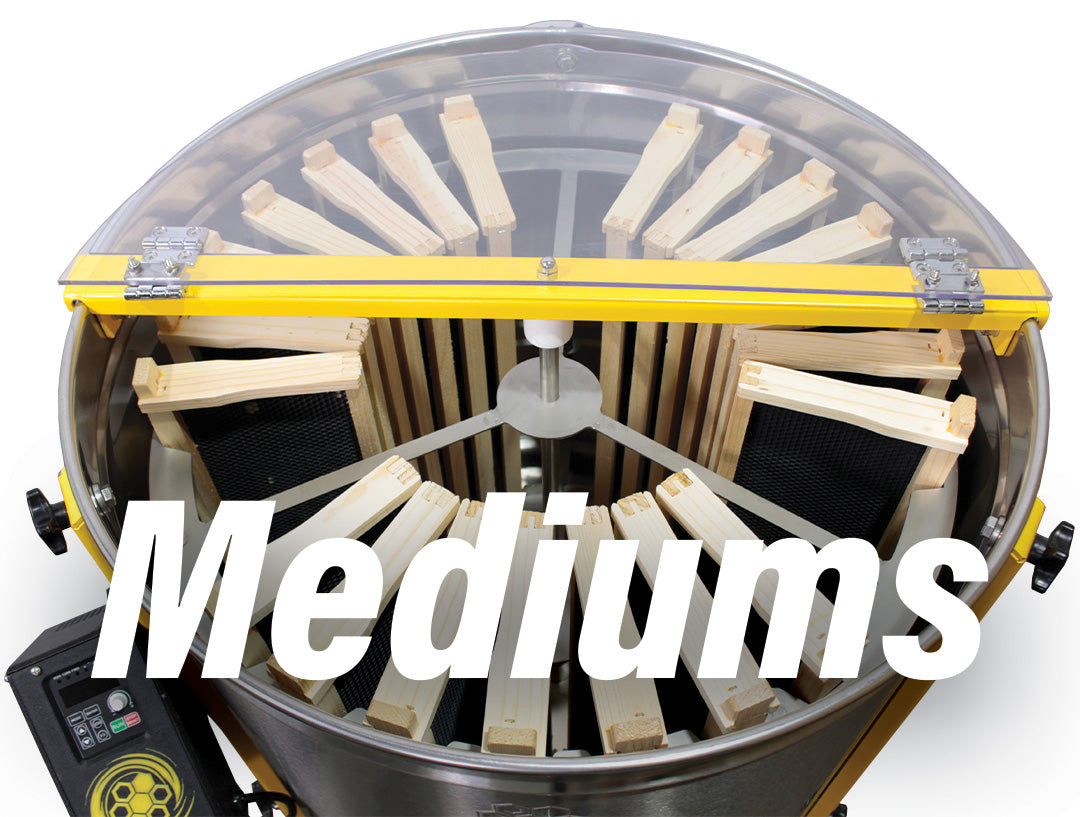

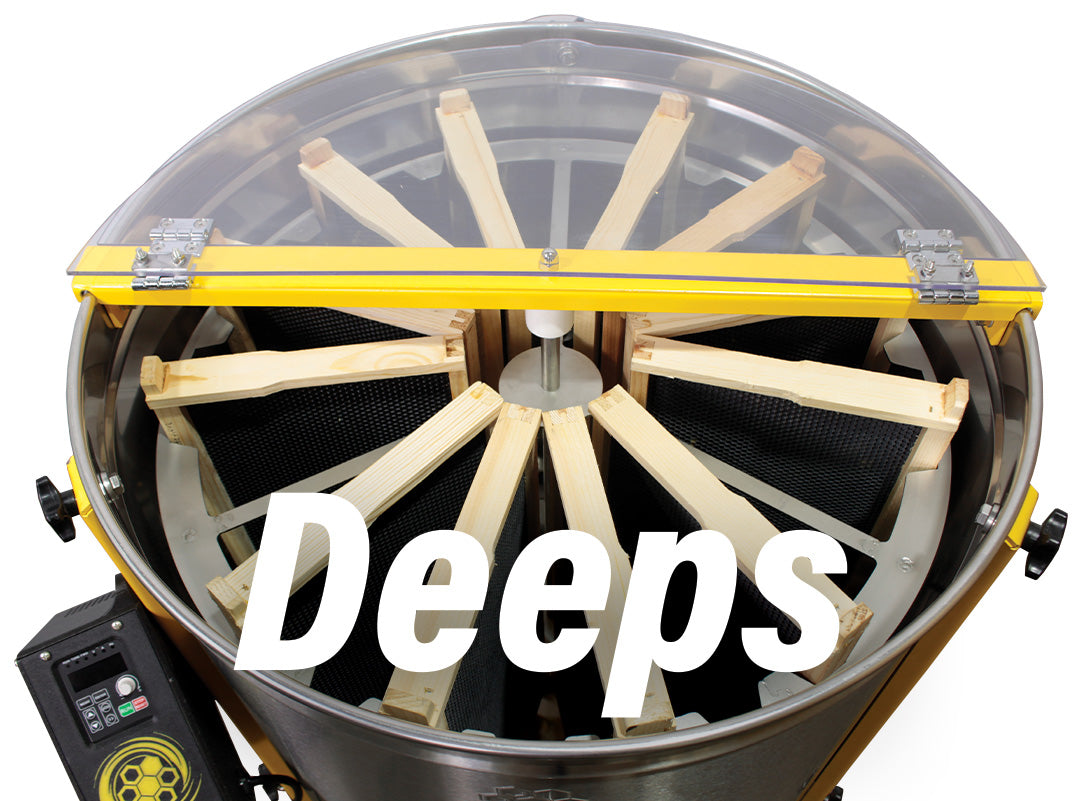

• Holds 12 deep frames or 21 medium/shallow frames (radial)
• Type 304 stainless steel, 22-gauge tank

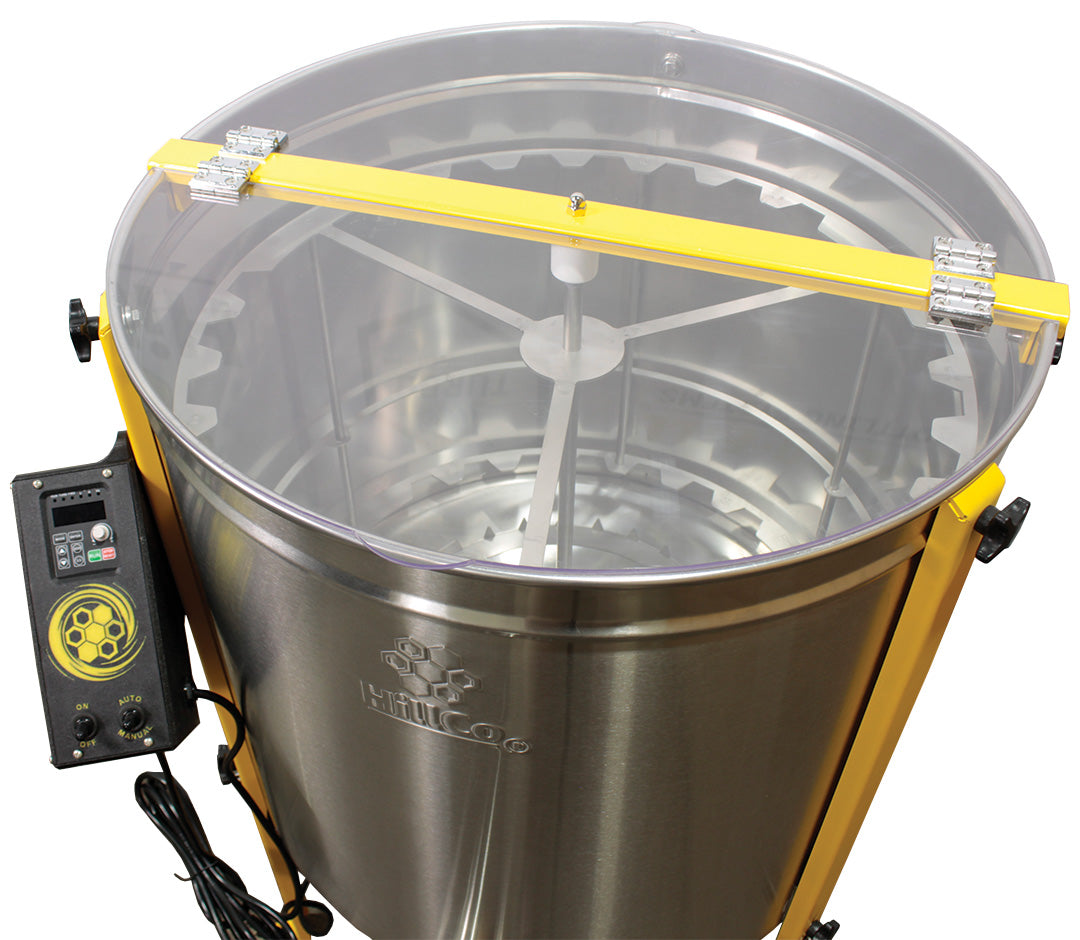

• Polycarbonate lids – virtually unbreakable (seriously, we drove a half-track over one)
• 5-gallon bucket clearance under honey gate
• PowerMaxx 3-phase drive with single-phase 110V input
• Smooth, quiet operation with adjustable speed control

Dimensions:

• Tank diameter - 26.25"
• Width (at widest point of legs) - 28"
• Overall height - 41"
• Machine weight - 100 lbs
• Hole Diameter - 1.75"
